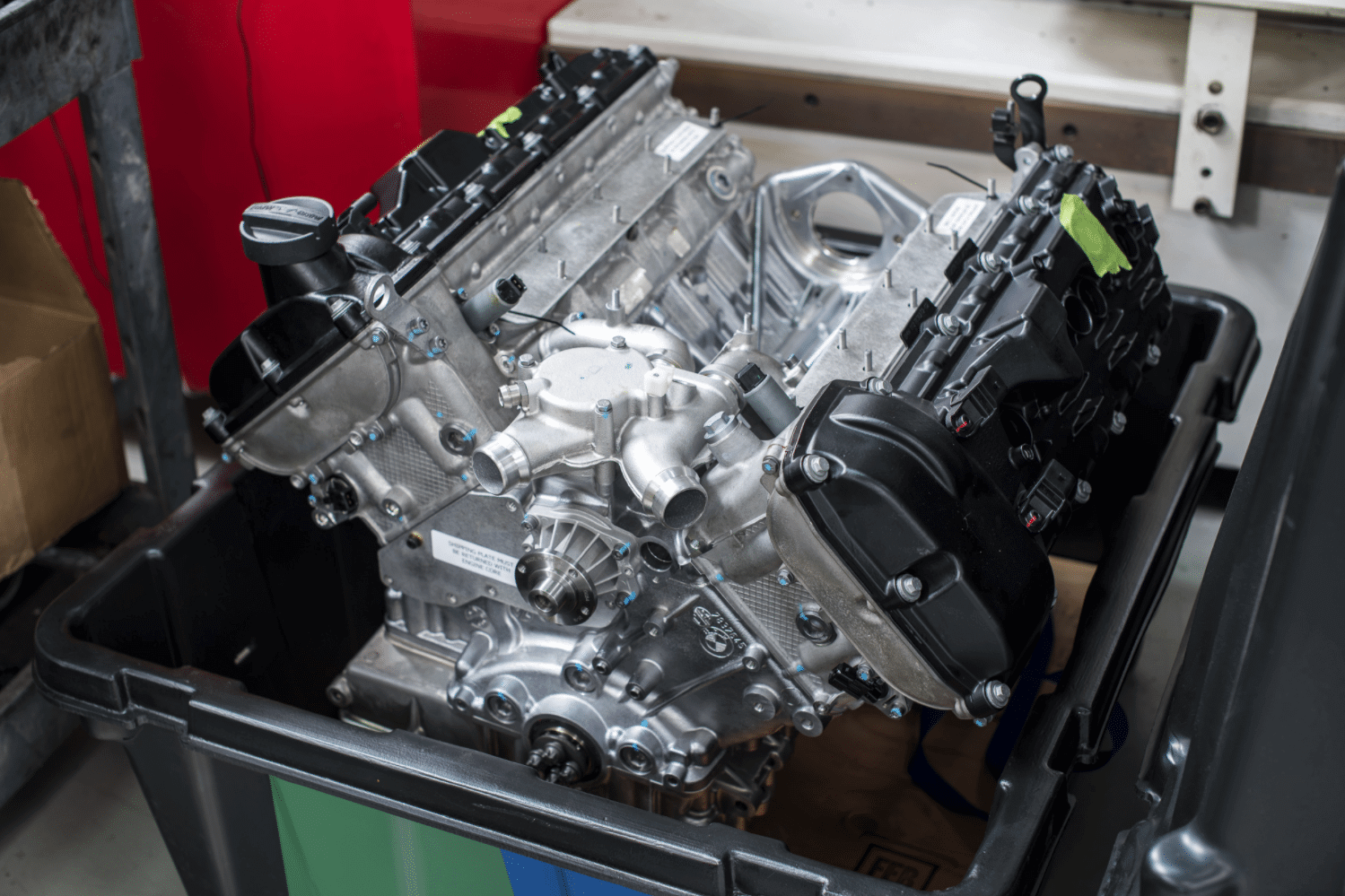

Continue shoppingS65 4.6L Stroked and Bored Engine | BMW E9X M3
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$29,995.00
-0%
Regular price
$29,995.00
Regular price
$29,995.00
Unit price
per
Couldn't load pickup availability
Fast Shipping
Free Returns
Best Deals
Get notified by email when this product becomes available
Have a question?
Description
The CarBahn S65 4.6L stroked and bored engine kit includes over-sized forged pistons, a forged crankshaft with increased stroke, and high-strength forged Carrillo connecting rods. The bore is increased to 94mm and the stroke is increased to 83mm. In addition, common S65 failure points are addressed with Clevite-Dinan racing rod bearings and CarBahn valve springs.
Steve Dinan has been building high performance and racing engines for BMW since 1977, winning 11 racing championships including 3 prototype championships and two 24 Hours of Daytona. The same engine shop that builds the racing engines also builds the street car engines; these talented engineers, machinists, and builders have built hundreds of engines from OEM street rebuilds to full-blown racing engines.
The CarBahn S65 4.6L stroked and bored engine kit includes over-sized forged pistons, a forged crankshaft with increased stroke, and high-strength forged Carrillo connecting rods. The bore is increased to 94mm and the stroke is increased to 83mm. In addition, common S65 failure points are addressed with Clevite-Dinan racing rod bearings and CarBahn valve springs.
Kit includes: Crankshaft, pistons (with rings, wrist pins, and circlips), connecting rods, rod bearings, valve springs, and MLS (multi-layer steel) head gasket.
Refer to the graphs below for the power results without catalytic converters on 100 octane race gas and using J607 (the typical aftermarket correction).
S65 4.6L Wet sump
| RPM | TRQ | HP |
| 3500 | 373.4 | 248.9 |
| 4000 | 392.2 | 298.7 |
| 4500 | 393.9 | 337.5 |
| 5000 | 390.8 | 372.1 |
| 5500 | 399.0 | 417.8 |
| 6000 | 388.4 | 443.8 |
| 6500 | 382.4 | 473.3 |
| 7000 | 371.5 | 495.1 |
| 7500 | 358.6 | 512.1 |
| 7700 | 352.3 | 516.5 |
| 8000 | 337.4 | 514.0 |
No cats, 100 octane unleaded, J607
S65 4.6L Wet sump with race cams:
| RPM | TRQ | HP |
| 3500 | 336.0 | 223.9 |
| 4000 | 353.0 | 268.9 |
| 4500 | 374.2 | 320.6 |
| 5000 | 392.8 | 374.00 |
| 5500 | 401.3 | 420.3 |
| 5600 | 404.6 | 431.4 |
| 6000 | 401.5 | 458.7 |
| 6500 | 402.3 | 497.9 |
| 7000 | 383.2 | 510.7 |
| 7500 | 367.5 | 524.8 |
| 8000 | 356.3 | 542.7 |
| 8200 | 348.8 | 544.6 |
No cats, 100 octane unleaded, J607
This engine can run with the stock oiling system and wet sump, but for even more power and increased reliability, CarBahn recommends the use of our dry sump kit. This kit includes a Dailey Engineering billet oil pan and oil pump, plus additional pulleys and a drive belt.
S65 4.6L Dry Sump:
| RPM | TRQ | HP |
| 3500 | 371.3 | 247.4 |
| 4000 | 382.1 | 291.0 |
| 4500 | 390.5 | 334.6 |
| 5000 | 398.3 | 379.1 |
| 5500 | 403.2 | 422.3 |
| 5600 | 403.6 | 430.3 |
| 6000 | 402.8 | 460.1 |
| 6500 | 395.6 | 489.6 |
| 7000 | 385.8 | 514.2 |
| 7500 | 373.3 | 533.1 |
| 8000 | 353.4 | 538.3 |
No cats, 100 octane unleaded, J607
S65 4.6L Dry Sump with Race Cams:
| RPM | TRQ | HP |
| 3500 | 334.2 | 222.7 |
| 4000 | 343.9 | 261.9 |
| 4500 | 371.0 | 317.9 |
| 5000 | 400.3 | 381.1 |
| 5500 | 405.6 | 424.8 |
| 5600 | 405.8 | 432.7 |
| 6000 | 404.3 | 461.9 |
| 6500 | 399.8 | 494.8 |
| 7000 | 397.6 | 529.9 |
| 7500 | 398.4 | 568.9 |
| 8000 | 373.8 | 569.4 |
| 8200 | 366.0 | 571.4 |
No cats, 100 octane unleaded, J607
